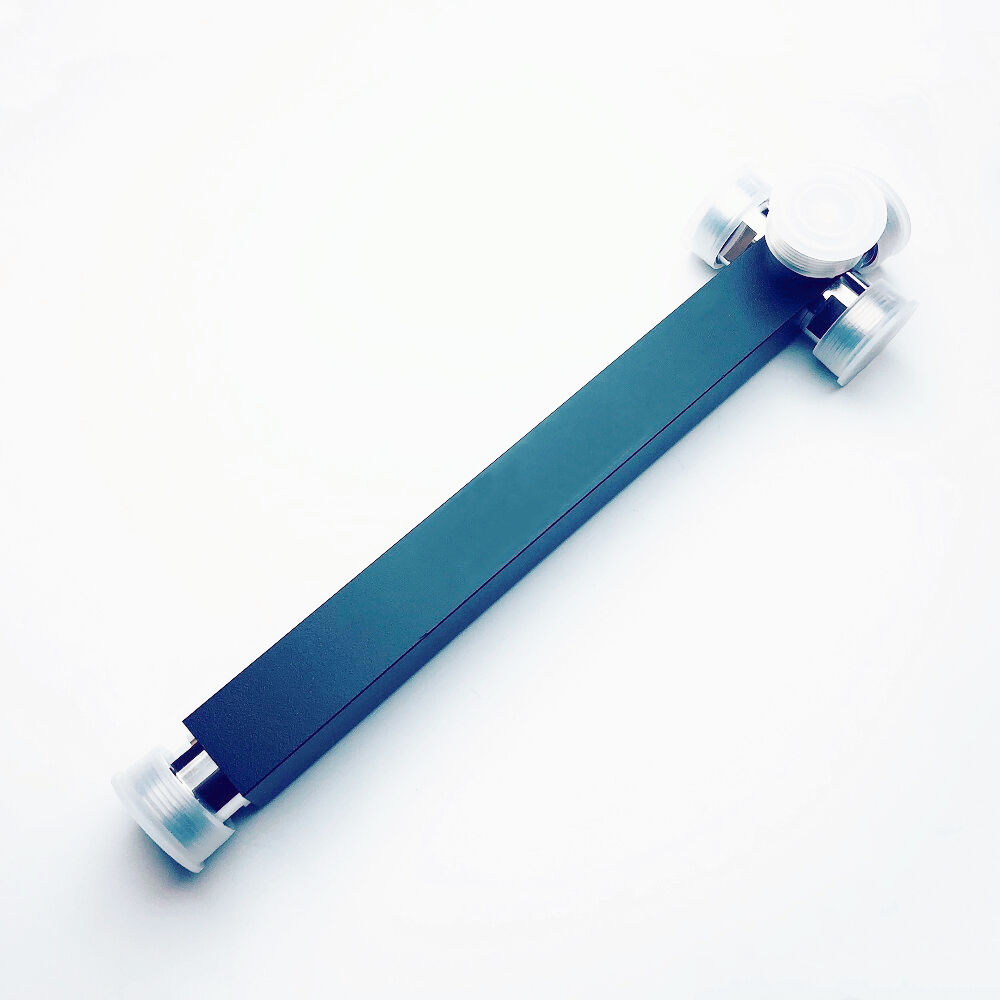

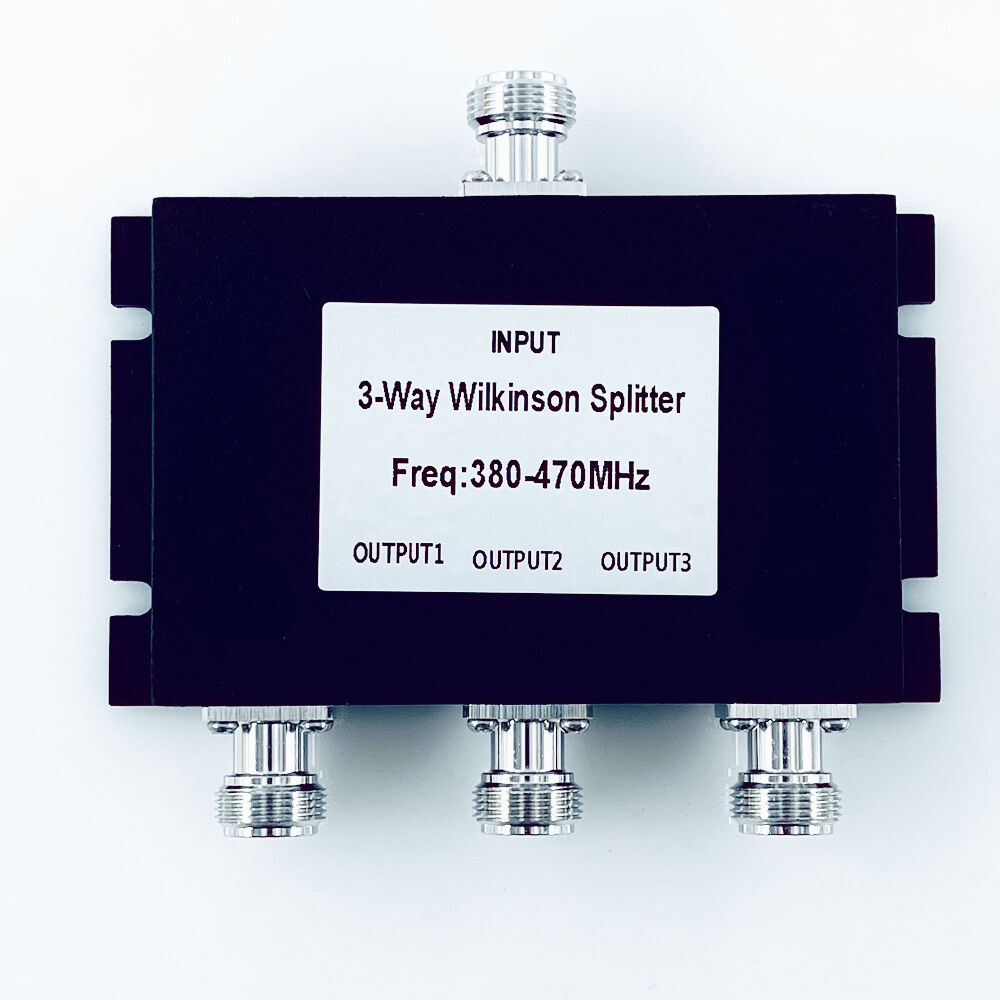

Power splitter is an RF device that distributes the power of one input signal to multiple output ports. It can distribute RF signals to different branches in a certain proportion, commonly used for signal distribution in communication systems and power feeding of antenna arrays.
A power splitter for base stations is called a base antenna splitter. It is used to split the RF signals in a base station. This type of splitter receives the input signal from the transmitter and it is split to multiple antennas or other components. They are usually designed to deal with high power signals, with low loss performance, so that communication in the base station is efficient.
common problem
What is a power splitter?
A power splitter is an RF device. It distributes the power of one input signal to multiple output ports. It’s often used for signal distribution in communication systems and power feeding of antenna arrays.
How does a power splitter divide signals?
It uses internal circuitry to split an input RF signal into multiple output signals according to a set proportion. This enables even distribution of power among different branches in a system.
What types of power splitters are there?
There are various types, such as equal - power splitters that divide signals equally, and unequal - power splitters that distribute signals in specific ratios, meeting diverse application needs.
