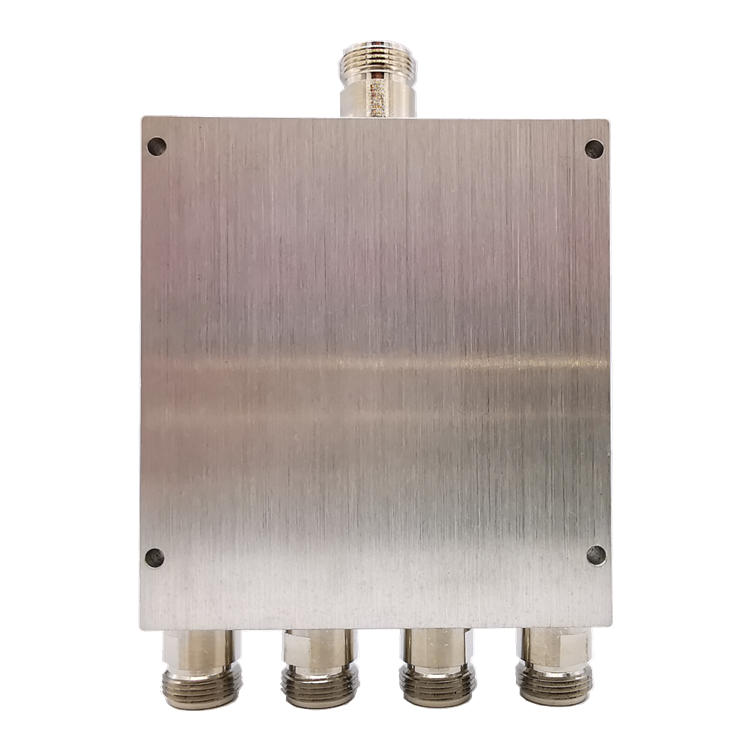

Power splitter is an RF device that distributes the power of one input signal to multiple output ports. It can distribute RF signals to different branches in a certain proportion, commonly used for signal distribution in communication systems and power feeding of antenna arrays.
A resistive power divider divides the power using resistors. This method is less economical and inefficient but very simple. Resistive power dividers are commonly used in scenarios where high accuracy power division is not the main concern. Insertion loss would be expected with this type of configuration as is often the case with higher order dividers.
common problem
What is a power splitter?
A power splitter is an RF device. It distributes the power of one input signal to multiple output ports. It’s often used for signal distribution in communication systems and power feeding of antenna arrays.
How does a power splitter divide signals?
It uses internal circuitry to split an input RF signal into multiple output signals according to a set proportion. This enables even distribution of power among different branches in a system.
Can the splitting ratio of a power splitter be adjusted?
Some power splitters come with adjustable splitting ratios. These allow users to adapt to different application requirements by changing the signal distribution proportion.
