When sourcing RF connectors for a telecom rollout, a data center cabling project, or a batch of custom cable assemblies, one point tends to surface early: the BNC male connector is not a universal part. What fits RG58 will not crimp correctly on LMR400. And if you order the wrong batch (even 500 pieces), you are looking at rework costs, project delays, and a costly correction process.

This overview is written for procurement teams and sourcing engineers who need to match BNC male crimp connectors to specific cable types, understand what to request in a bulk quote, and verify that the supplier is factory-direct with the certifications to prove it.

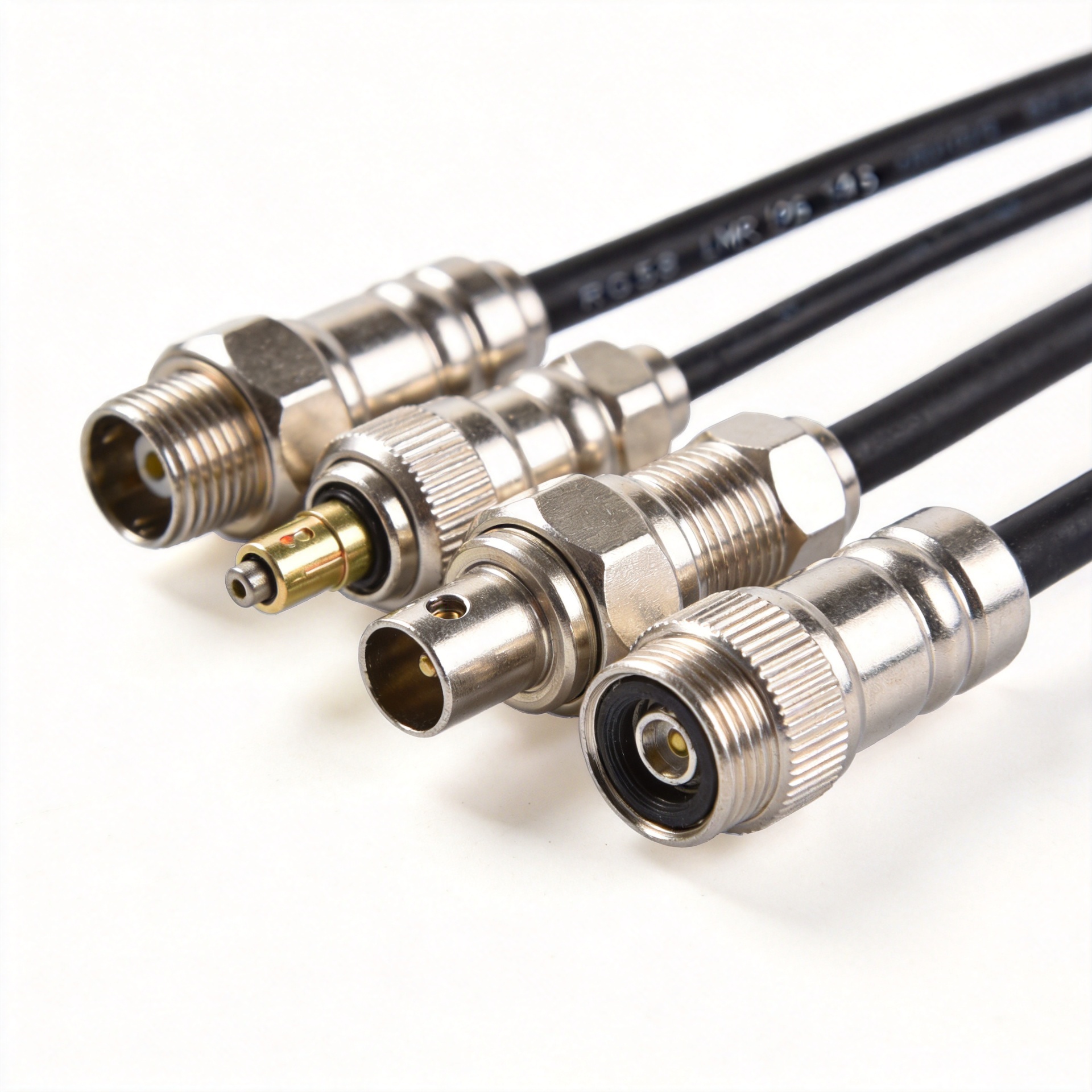

BNC Male Connector Models by Cable Type

The most critical dimension in BNC male connector selection is cable outer diameter and dielectric size. Specifying just "BNC male crimp" without referencing the cable type is one of the most common procurement errors in RF connector sourcing. The table below maps widely used cable types to their corresponding BNC male connector configurations.

If you are uncertain which model applies to your cable spec, the safest approach is to provide cable OD, dielectric diameter, and braid type in your RFQ. A supplier who responds with the matching crimp ferrule spec and center pin bore dimensions is showing actual manufacturing depth, not just pulling a catalog entry.

Electrical Performance Parameters

For telecom and data center procurement, BNC male crimp connectors at 50Ω are the industry standard. Qualified BNC male connectors for professional RF applications typically meet the following benchmarks:

• Impedance: 50Ω
• Frequency range: DC to 3 GHz (standard grade); up to 6 GHz for precision grades
• VSWR: ≤1.2 maximum at rated frequency
• Working voltage: 500 VRMS
• Dielectric withstanding voltage: 1500 VRMS
• Insulation resistance: ≥5000 MΩ
• Center pin: gold-plated brass (standard); other plating on request

These parameters matter beyond the datasheet — they directly affect signal integrity across antenna systems, base station feeders, and calibration test benches. If a supplier cannot provide these specifications alongside sample shipment documentation, that is worth clarifying before committing to a bulk purchase order.

Bulk Procurement: MOQ, Pricing Tiers, and Lead Times

Factory-direct bulk pricing for BNC male connectors follows a tiered structure. For procurement teams working with annual volumes across multiple cable types, the cost difference between a 100-piece trial order and a 1,000-piece production run is meaningful. The following ranges reflect direct factory practice rather than distributor pricing.

• MOQ: 100–200 pieces per model (cable-type specific configurations)
• Standard lead time: 15–25 business days for stocked configurations
• Custom or first-run orders: 20–30 days depending on tooling requirements
• Urgent production: Priority slots available — confirm capacity and timeline with the factory at RFQ stage
• Volume pricing tiers: Available from 500-piece batches; consolidated multi-model orders (e.g., RG58 and LMR400 BNC male connectors on a single PO) may qualify for adjusted pricing

Zhenjiang Jiewei operates as a direct manufacturer with over 25 years of experience in RF connectors, feeder cables, cable assemblies, and RF loads. Production scheduling, quality inspection, and compliance documentation are all managed in-house — not outsourced to a third-party facility. For procurement teams that need to consolidate bnc plug and bnc cable assembly sourcing under a single verified vendor, this reduces the audit burden compared to splitting the order across multiple suppliers.

RoHS Compliance and Documentation

RoHS compliance is not optional for exports into Europe and most North American markets. All standard BNC male connector models from Jiewei are produced under RoHS-compliant material controls. Declarations of conformity are available upon request for procurement teams that include compliance documentation in their vendor qualification process.

For applications in regulated industries — avionics subassembly, medical cable harnesses, or government infrastructure procurement — COC and COO certificates can accompany shipment documentation. This is worth confirming during vendor qualification, not after the first delivery.

Why Factory-Direct Sourcing Matters for BNC Male Connectors

The practical difference between factory-direct and distributor sourcing for BNC male connectors is more visible in bulk than in sample quantities. Distributors add margin, often compress lead time visibility, and typically cannot provide crimp tooling specifications, cable-specific interface data, or direct production scheduling adjustments for urgent orders.

For telecom infrastructure buyers, lab sourcing managers, or OEM cable assembly engineers handling multi-model BNC connector procurement — whether that is bnc plug formats for antenna jumpers or heavier LMR400-compatible BNC male connectors for base station builds — a direct factory contact means faster response on specification queries, clearer traceability on materials, and a shorter resolution path when quality issues arise.

Jiewei's product coverage spans the full RF interconnect BOM: connectors, feeder cables, cable assemblies, and RF loads. Buyers looking to consolidate procurement across these categories at a single qualified source can reduce the coordination overhead that multi-vendor sourcing typically creates.

Requesting a Bulk Quote

To receive an accurate bulk quote for cable-specific BNC male connectors, include the following in your inquiry:

1. Cable type and outer diameter (e.g., LMR400, 10.29 mm OD)
2. Connector configuration: BNC male crimp, straight or right-angle
3. Required quantity per model and total order volume
4. Target delivery window or required lead time
5. Compliance requirements: RoHS declaration, COC, COO, or other documentation
6. Custom requirements, if any: extended crimp ferrule, special plating, branded packaging

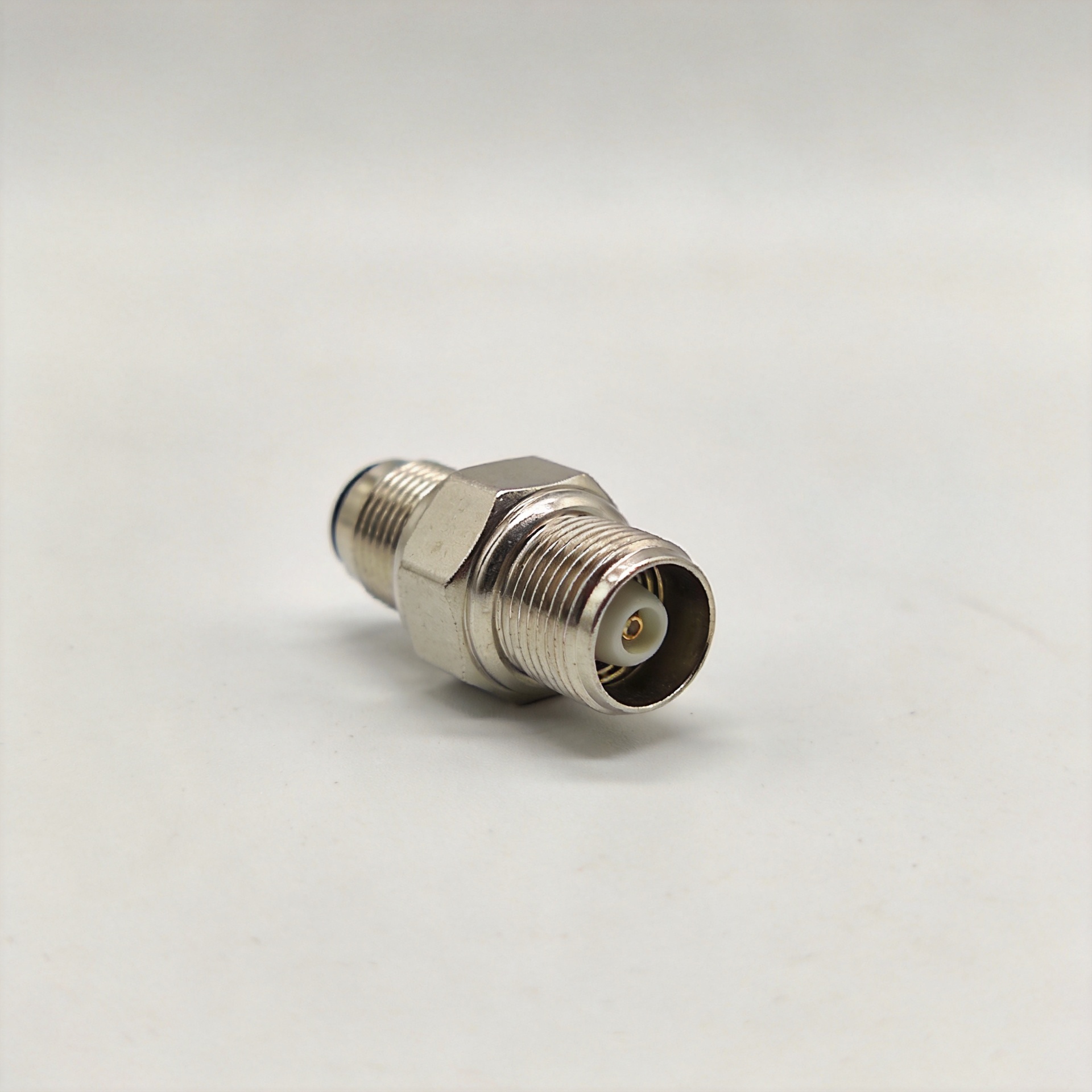

For current availability and pricing on cable-specific BNC male models — including the BNC male crimp for RG58 and LMR195 and the BNC male for LMR400, RG213, and RG8/U — contact Zhenjiang Jiewei directly through the product pages linked above.
